Bay vs. bow windows
Both are groups of windows joined at angles so they project from the house. The difference is the shape.
| Bay window | Bow window | |
|---|---|---|
| Number of units | Usually three | Usually four to six |
| Shape | Wide center flanked by two angled sides | Gentle curve of equal-width units |
| Projection | Deeper; makes a nook or seat | Shallower, more rounded |
| Typical units | Picture center with casement or double-hung sides | All fixed, or some operable |
| National installed range (Fixr) | $900–$4,500 | $1,500–$8,000 |

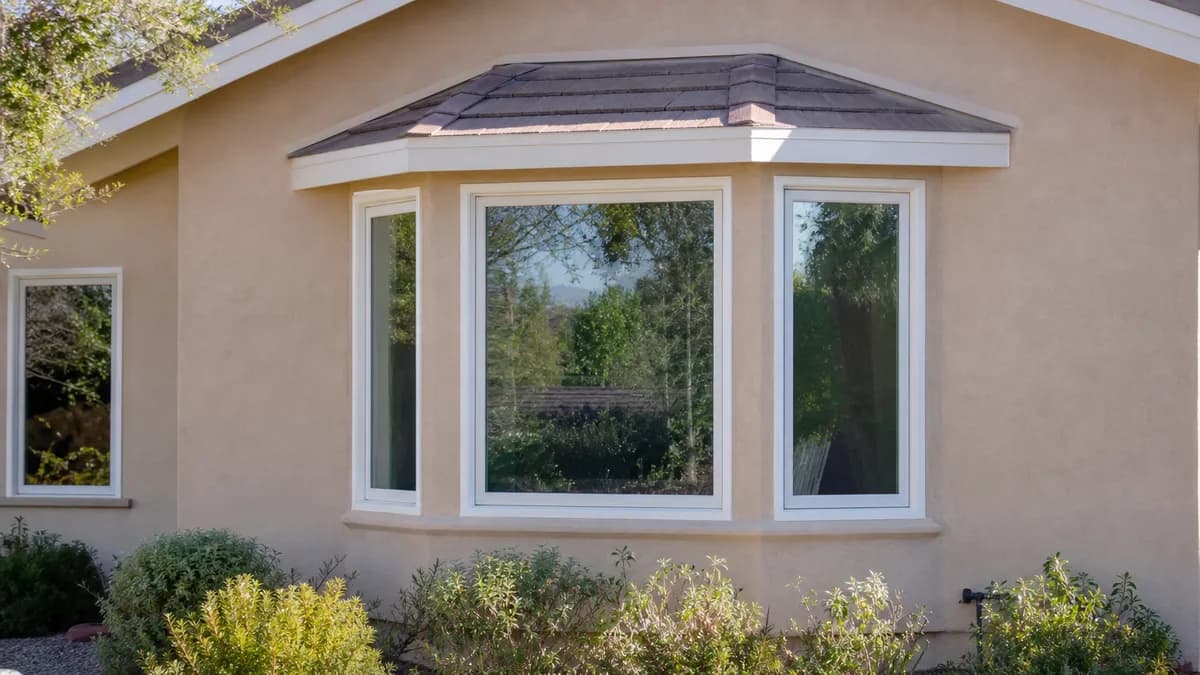

A bay suits a living room or breakfast nook where you want a seat. A bow suits a long, wide wall where you want a sweeping view. The center of a bay is usually a fixed picture window; the sides are often casement or double-hung units for air.
Replacing an existing bay window
If the house already has a bay, the structure is there: the projection, the seat board or floor, the head board, and the little roof or soffit over it. Replacing it falls into one of two jobs.
Replace the window units only
When the bay's framing, roof and seat are sound, the installer replaces the individual windows within the existing structure. This works like any other replacement and is held to the replacement-window values in Title 24: U-factor 0.27 or lower and SHGC 0.23 or lower in climate zones 11 and 12, or U-0.40 and SHGC-0.35 if the whole job is 75 sq ft of window or less.
Replace the whole bay assembly
Factory-built bay units arrive as one assembly with the seat and head boards attached. When the old bay has rot in the seat, a sagging projection or roof leaks, a full tear-out and new assembly may be the better fix. That means removing the roof cap, possibly re-flashing into the stucco and the main roof line, and supporting the new unit with cables or brackets. Ask the installer to look under the seat and at the roof flashing before quoting.
Adding a bay to a flat wall
Adding a bay where there is a flat window today is a remodel, not a replacement. The installer has to widen or reshape the opening, which usually means cutting studs and adding a new header, then building or hanging the projection and roofing over it. Rocklin, for example, asks for structural calculations only when openings are added or enlarged, which is exactly what this is. Expect a permit, plan review and inspections.
New window area under Title 24
A bay almost always adds glass area beyond the old flat window, and added window area is treated differently from same-size replacement. Under the 2025 code:
- Added fenestration must meet Title 24's prescriptive table: U-0.27 and SHGC-0.23 in climate zones 11 and 12.
- Total window area is limited to 20% of conditioned floor area, and west-facing area to 5% in climate zone 12. Those limits apply to new or added area.
- Adding up to 16 sq ft of window is exempt from the total and west-facing area limits.
A bay on a west wall deserves extra thought: the angled sides catch sun at different times, and the heat gain adds up on summer afternoons. Your installer or designer will run the numbers for the permit.
What bay and bow windows cost
National installed ranges from Fixr; we have no Sacramento-specific price data.
| Item | Typical national range |
|---|---|
| Bay window, installed | $900–$4,500 |
| Bow window, installed | $1,500–$8,000 |
| Labor on large bay/bow units | Up to about $800 |
| Picture window (single unit, for comparison) | $300–$1,600 |
Those ranges are for the window work. Adding a new bay also involves framing, a header, roofing, stucco patching and paint, plus permit fees, which the guide ranges don't capture. Get those items itemized on any quote. More context in window replacement cost in Sacramento.
Glass, seat and comfort details
- Ask whether the seat and head boards are insulated. An uninsulated seat board can feel cold in winter and warm in summer.
- If the bay sits low with large panes near the floor, safety-glass rules may require tempered glass. Ask the installer to confirm which panes need it.
- Match the side units' operation to how you use the room: casements catch a breeze, double-hung suits traditional fronts.
- Frame material matters on a projecting unit exposed on three sides. Compare vinyl and fiberglass.
Hiring for a bay window job
For a straight replacement, a C-17 glazing contractor can handle the work. Adding a bay involves framing and roofing, so a B general building contractor is often the better fit. Verify either license at cslb.ca.gov, and remember California law allows a deposit of no more than 10% of the price or $1,000, whichever is smaller. Sacramento County has required a permit for window replacement since 2010; inside a city, check with that city's building division. When you're ready, we'll match you with an installer for window replacement in Sacramento.
Main guide: window replacement in Sacramento.
